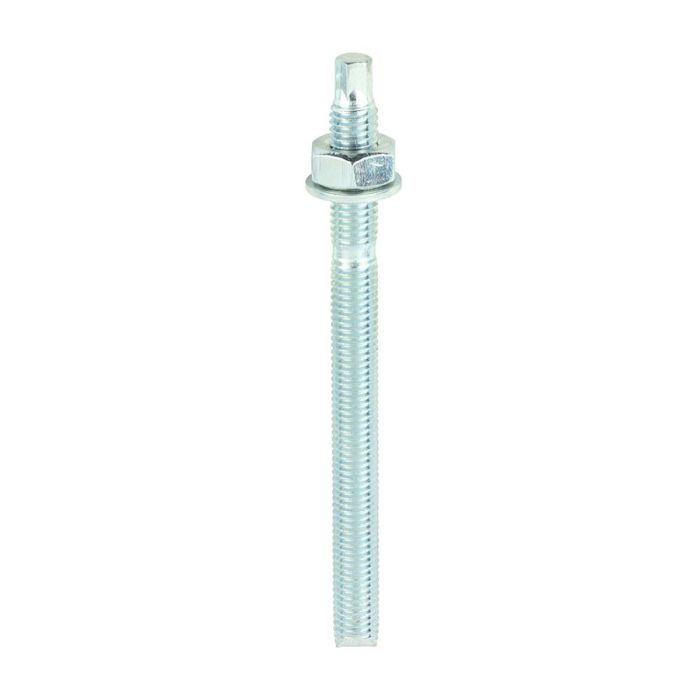

Chemical Anchor Stud - BZP M10x130 per Box/10 10130CS

SKU
20007829

Designed for use when fixing with chemical resins. (Nut setter included)

£4.78 £3.98
/ Each

Sign in or Register for trade prices
Product Details
Designed for use when fixing with chemical resins. (Nut setter included)



Chisel point, prevents the rod turning when tightening

External hex drive

Embedment depth mark

Manufactured from grade 5.8 carbon steel

Nut Type : Hex Full

Washer Type : Form A

Drill Hole Dia. mm : 12.0

Fixture Hole Diameter mm : 12.0

Hole Depth mm : 90

Max Fixture Thickness mm : 20
Features
More Information
Manufacturer Name T.I. MIDWOOD & CO LIMITED
Product Material Carbon Steel
Product Net Weight kg 0.78
Manufacturer Bullet 1 Chisel point, prevents the rod turning when tightening
Manufacturer Bullet 2 External hex drive
Manufacturer Bullet 3 Embedment depth mark
Manufacturer Bullet 4 Manufactured from grade 5.8 carbon steel
Product Size M10 x 130
Manufacturer Bullet 5 Nut Type : Hex Full
Packaged Length mm 152mm
Manufacturer Bullet 6 Washer Type : Form A
Packaged Width mm 36mm
Packaged Height mm 42mm
Carton Package Length mm 152mm
Carton Package Heigh mm 42mm
Manufacturer Bullet 7 Drill Hole Dia. mm : 12.0
Carton Packaging Material Box
Pallet Cage Width mm 144mm
Manufacturer Bullet 8 Fixture Hole Diameter mm : 12.0
Pallet Cage Length mm 322mm
Pallet Cage Height mm 194mm
Manufacturer Bullet 9 Hole Depth mm : 90
Pallet Cage Weight kg 15.8
Pallet Cage Barcode 5055017565023
